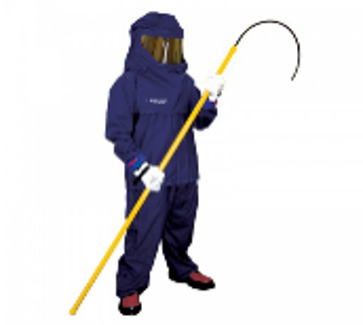

ISOVOLT 2 m Foam-Filled Electrical Rescue Hook
Purpose-designed rescue equipment for helping trained personnel move a technician away from a high-voltage electrical hazard without direct physical contact.
Product code
HV-RES2M
Length
2 metres
Configuration
Two-piece
Shaft
Foam-filled fibreglass
Hook
18-inch coated steel
Status
Available to Source
Price
Price on Request
Specified by BYD as required electrical rescue equipment for its EV workshop environment.
ISOVOLT 2 m Foam-Filled Electrical Rescue Hook
Code: HV-RES2M · Configuration: 2 m, two-piece, foam-filled fibreglass
Price on Request
Why Choose the Rescue Hook
Emergency Separation
Helps trained responders maintain distance from a high-voltage electrical hazard.
Two-Metre Reach
Provides extended reach during controlled emergency intervention.
Two-Piece Transport
Separates into two sections for easier transport and storage.
Foam-Filled Fibreglass
Purpose-designed insulated shaft construction for electrical rescue applications.
Emergency Rescue Without Direct Physical Contact
A person assisting an electrically energised casualty must not make direct physical contact or use conductive material.
The rescue hook is intended to help trained personnel move a casualty or obstruction away from the hazard while maintaining separation.
The rescue hook does not
- Makes contact with live electricity safe
- Eliminates electric-shock risk
- Permits untrained rescue
- Replaces electrical isolation
- Replaces emergency medical care
- Guarantees protection at every voltage
- General-purpose lifting equipment
High-Level Response Sequence
Raise the Alarm
Activate the site emergency procedure.
Isolate Where Possible
De-energise or isolate the electrical source using the approved procedure where it can be completed safely.
Avoid Direct Contact
Do not touch a person who may still be energised.
Use Approved Rescue Equipment
A trained responder may use the rescue hook according to the site procedure and approved product instructions.
Electrical rescue must only be attempted by trained personnel. The rescue hook does not replace electrical isolation, first aid, CPR, AED access or emergency services.
Confirmed Configuration
2 m Overall Length
Custom ISOVOLT configuration providing extended reach.
Two-Piece Construction
Can be separated into two sections for transport and storage.
Foam-Filled Fibreglass Shaft
Insulated shaft construction intended for electrical-rescue applications.
18-Inch Steel Hook
Coated and heat-treated steel body hook.
Mechanically Reinforced Construction
Designed to support pushing, pulling and twisting during emergency intervention.
Specified by BYD
Included in BYD's EV workshop rescue-equipment requirements.
Applications
Final suitability depends on the site risk assessment, emergency procedure and verified supporting documentation.
Product Specifications
Confirmed ISOVOLT 2 m configuration. Supplier-listed standards references are shown below; supporting conformity and test documentation will be confirmed with the technical quotation.
| Product name | ISOVOLT 2 m Foam-Filled Electrical Rescue Hook |
| Product code | HV-RES2M |
| Public brand | ISOVOLT |
| Overall length | 2 metres |
| Construction | Two-piece configuration |
| Shaft | Foam-filled fibreglass |
| Hook | 18-inch coated, heat-treated steel body hook |
| Primary application | Emergency high-voltage electrical rescue |
| BYD positioning | Specified by BYD for EV workshop requirements |
| Supplier-listed standards references | ASTM F711 and ASTM F1826 |
| Purchase method | Technical quotation |
Supplier-Listed Standards References: The underlying supplier information references ASTM F711 and ASTM F1826. Supporting conformity and test documentation for the exact 2 m configuration will be provided where applicable.
Unsupported technical values (weight, diameter, load capacity, maximum working voltage, proof-test voltage, warranty and similar) are not published and will be confirmed during quotation.
Positioning Emergency Rescue Equipment
A mounting height is not published, and a wall bracket is not claimed to be included. Final mounting requirements must follow approved instructions.
Care & Maintenance
Inspection
- Inspect the shaft, joint and hook before use
- Check for cracks, impact damage, contamination or deterioration
- Do not use damaged equipment
- Keep both sections stored together
Care & Storage
- Store in a clean, dry and protected location
- Use only approved cleaning methods
- Do not apply unverified solvents or abrasive cleaners
- Follow the final inspection and testing requirements
A fixed inspection or retest interval is not published without supporting documentation.
Technical Documentation
No official public technical document is currently uploaded. The final product documentation, testing information, inspection requirements and supporting conformity information will be supplied with the technical quotation where applicable.
Documentation prepared for the technical quotation
HV-RES2M is presented under the ISOVOLT brand. No upstream supplier is named publicly.
Frequently Asked Questions
It is intended to help trained personnel move a technician away from a high-voltage electrical hazard without direct physical contact.
